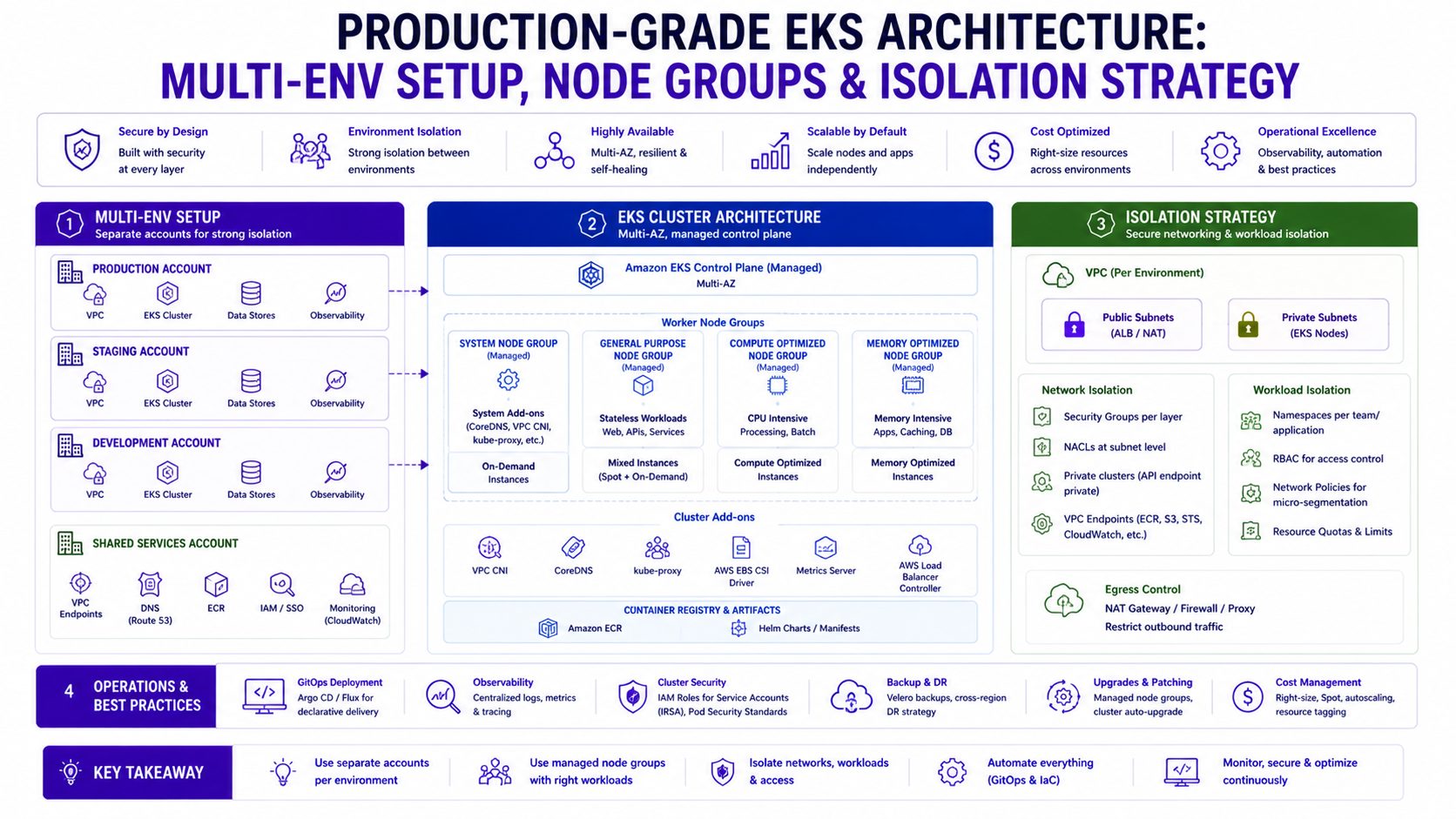

Production-Grade EKS Architecture: Multi-Env Setup, Node Groups & Isolation Strategy

AWS Series | Part 11 — Building secure, cost-optimised, cloud-native infrastructure on AWS.

TL;DR

Decision	Development	Staging	Production
Cluster strategy	Shared cluster	Shared cluster	Dedicated cluster
Node strategy	Karpenter Spot only	Karpenter mixed	MNG bootstrap + Karpenter
Namespace isolation	Per-team namespaces	Per-app namespaces	Per-app + network policies
Access control	Developer edit access	Read + deploy via ArgoCD	ArgoCD only, no kubectl
Resource quotas	Loose	Moderate	Strict
Scaling	Manual / low min replicas	HPA enabled	HPA + topology spread
Observability	Basic CloudWatch	Full CloudWatch	CloudWatch + Splunk + traces
Cost priority	Minimise	Balance	Reliability first

Introduction

Blog 10 answered the question: ECS or EKS? This post answers the follow-up question every engineer asks after choosing EKS: how do I actually structure this for multiple environments without creating a mess I can't operate?

The wrong answer is to replicate your production cluster setup into dev and staging, spend three times the money, and still end up with environments that drift from each other because "they're just dev." The other wrong answer is to run everything on one cluster with environment labels on namespaces and discover at 2am that a noisy dev workload has starved your production scoring service of CPU.

The right answer sits between those extremes — and it depends on your scale, your team structure, and your compliance requirements. I'll give you the full blueprint: multi-environment cluster strategy, node group design patterns, namespace isolation with network policies, RBAC that dev teams can actually work with, and the Terraform structure that makes all of it repeatable.

Everything in this post is grounded in the Rabobank fraud detection platform and what I'd do differently starting fresh today.

---

1. Multi-Environment Strategy — Cluster Per Environment or Shared?

This is the first and most consequential decision. Get it wrong and you're either overspending or risking production stability.

Option A — One Cluster, Multiple Namespaces

prod-eks-cluster
├── namespace: fraud-detection-prod
├── namespace: fraud-detection-staging
├── namespace: fraud-detection-dev
└── namespace: kube-system

When this works: Small teams (<10 engineers), limited budget, early stage, workloads are not highly regulated.

Why it breaks down: A runaway batch job in dev can consume cluster-level resources. Network policies become complex to maintain. Compliance auditors ask uncomfortable questions about prod/non-prod separation. EKS cluster upgrades affect all environments simultaneously.

Option B — Cluster Per Environment (Recommended for Production Platforms)

dev-eks-cluster     (shared dev + staging, Spot-heavy, low cost)
prod-eks-cluster    (production only, On-Demand for critical path)

When this is right: Regulated environments (DORA, PCI-DSS, SOC 2), multi-team platforms, 10+ services, compliance requirements for production isolation.

Cost reality: Two clusters = two control plane charges ($0.10/hour each = ~$146/month). At enterprise scale, this is negligible compared to the operational safety and compliance benefits.

At Rabobank, production ran on a dedicated cluster. Dev and staging shared a second cluster with namespace isolation between them. This is the pattern I'd recommend starting with for any regulated workload.

Terraform — Multi-Cluster Pattern

# environments/dev/main.tf
module "eks_dev" {
  source  = "../../modules/eks-cluster"

  cluster_name    = "dev-eks-cluster"
  cluster_version = "1.30"
  environment     = "dev"

  node_strategy = "spot_only"
  vpc_id        = module.vpc_dev.vpc_id
  subnet_ids    = module.vpc_dev.private_subnet_ids

  endpoint_public_access  = true
  endpoint_private_access = true

  enabled_cluster_log_types = ["api", "audit"]

  tags = { Environment = "dev", CostCentre = "platform-dev" }
}

# environments/prod/main.tf
module "eks_prod" {
  source  = "../../modules/eks-cluster"

  cluster_name    = "prod-eks-cluster"
  cluster_version = "1.30"
  environment     = "prod"

  node_strategy = "mng_plus_karpenter"
  vpc_id        = module.vpc_prod.vpc_id
  subnet_ids    = module.vpc_prod.private_subnet_ids

  endpoint_public_access  = false
  endpoint_private_access = true

  enabled_cluster_log_types = [
    "api", "audit", "authenticator", "controllerManager", "scheduler"
  ]

  tags = { Environment = "prod", CostCentre = "platform-prod" }
}

The Reusable EKS Cluster Module

# modules/eks-cluster/main.tf
resource "aws_eks_cluster" "this" {
  name     = var.cluster_name
  role_arn = aws_iam_role.cluster.arn
  version  = var.cluster_version

  vpc_config {
    subnet_ids              = var.subnet_ids
    endpoint_public_access  = var.endpoint_public_access
    endpoint_private_access = var.endpoint_private_access
    security_group_ids      = [aws_security_group.cluster.id]
  }

  encryption_config {
    provider  { key_arn = aws_kms_key.secrets.arn }
    resources = ["secrets"]
  }

  enabled_cluster_log_types = var.enabled_cluster_log_types

  access_config {
    authentication_mode                         = "API_AND_CONFIG_MAP"
    bootstrap_cluster_creator_admin_permissions = false
  }

  tags       = merge(var.tags, { Name = var.cluster_name })
  depends_on = [
    aws_iam_role_policy_attachment.cluster_policy,
    aws_cloudwatch_log_group.cluster,
  ]
}

resource "aws_kms_key" "secrets" {
  description             = "EKS secrets encryption — ${var.cluster_name}"
  deletion_window_in_days = var.environment == "prod" ? 30 : 7
  enable_key_rotation     = true
  tags                    = var.tags
}

resource "aws_cloudwatch_log_group" "cluster" {
  name              = "/aws/eks/${var.cluster_name}/cluster"
  retention_in_days = var.environment == "prod" ? 90 : 14
  tags              = var.tags
}

---

2. Node Group Strategy — The Three-Tier Pattern

Every production EKS cluster should have three distinct compute tiers. Running all workloads on a single node group is the most common mistake — and the one that causes the most production incidents.

Tier 1 — System Node Group (Managed, On-Demand, Always-On)

Small, fixed, always-on. Hosts cluster-critical DaemonSets that cannot tolerate Spot interruption: CloudWatch agent, Splunk forwarder, kube-proxy, VPC CNI. These pods must survive an AZ interruption without Kubernetes having to reschedule them from a terminated Spot node.

resource "aws_eks_node_group" "system" {
  cluster_name    = aws_eks_cluster.this.name
  node_group_name = "system"
  node_role_arn   = aws_iam_role.node.arn
  subnet_ids      = var.private_subnet_ids

  instance_types = ["m5.large"]

  scaling_config {
    desired_size = 2
    min_size     = 2
    max_size     = 4
  }

  taint {
    key    = "node-role"
    value  = "system"
    effect = "NO_SCHEDULE"
  }

  update_config {
    max_unavailable = 1
  }

  labels = {
    "node-role"   = "system"
    "environment" = var.environment
  }

  tags = merge(var.tags, { Name = "system-node-group" })
}

Why the taint matters: Without NO_SCHEDULE on system nodes, Kubernetes will happily schedule application pods on your system nodes. During a spike, application pods can consume all CPU/memory and starve the CloudWatch agent — you lose observability exactly when you need it most.

Tier 2 — On-Demand Application Node Pool (Karpenter)

Handles latency-sensitive workloads. On-Demand only — no Spot interruption risk for the critical path.

# karpenter/nodepools/on-demand.yaml
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: on-demand
spec:
  template:
    metadata:
      labels:
        node-pool: on-demand
    spec:
      nodeClassRef:
        apiVersion: karpenter.k8s.aws/v1
        kind: EC2NodeClass
        name: default
      requirements:
        - key: "karpenter.sh/capacity-type"
          operator: In
          values: ["on-demand"]
        - key: "karpenter.k8s.aws/instance-category"
          operator: In
          values: ["c", "m"]
        - key: "karpenter.k8s.aws/instance-cpu"
          operator: In
          values: ["4", "8", "16"]
        - key: "kubernetes.io/arch"
          operator: In
          values: ["amd64", "arm64"]
      taints:
        - key: "workload-type"
          value: "latency-sensitive"
          effect: NoSchedule
  disruption:
    consolidationPolicy: WhenEmpty
    consolidateAfter: 5m
  limits:
    cpu: 500
    memory: 2000Gi

Tier 3 — Spot Batch Node Pool (Karpenter)

Handles background processors, ML batch jobs, enrichment services. Spot-only, aggressively bin-packed.

# karpenter/nodepools/spot-batch.yaml
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: spot-batch
spec:
  template:
    metadata:
      labels:
        node-pool: spot-batch
    spec:
      nodeClassRef:
        apiVersion: karpenter.k8s.aws/v1
        kind: EC2NodeClass
        name: default
      requirements:
        - key: "karpenter.sh/capacity-type"
          operator: In
          values: ["spot"]
        - key: "karpenter.k8s.aws/instance-category"
          operator: In
          values: ["c", "m", "r"]
        - key: "karpenter.k8s.aws/instance-cpu"
          operator: In
          values: ["4", "8", "16", "32"]
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 30s
  limits:
    cpu: 1000
    memory: 4000Gi

EC2NodeClass — Shared Configuration

# karpenter/nodeclass.yaml
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default
spec:
  amiFamily: AL2023
  role: karpenter-node-role

  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: prod-eks-cluster

  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: prod-eks-cluster

  blockDeviceMappings:
    - deviceName: /dev/xvda
      ebs:
        volumeSize: 50Gi
        volumeType: gp3
        encrypted: true
        kmsKeyID: arn:aws:kms:eu-west-1:123456789012:key/xxx

  userData: |
    #!/bin/bash
    echo "net.core.somaxconn=65535" >> /etc/sysctl.conf
    echo "net.ipv4.tcp_max_syn_backlog=65535" >> /etc/sysctl.conf
    sysctl -p

  tags:
    Environment: production
    ManagedBy: karpenter

Assigning Pods to the Right Node Pool

# Helm values — scoring service (latency-sensitive path)
tolerations:
  - key: "workload-type"
    value: "latency-sensitive"
    operator: Equal
    effect: NoSchedule
nodeSelector:
  node-pool: on-demand

---
# Helm values — batch enrichment service (Spot-tolerant)
tolerations: []
nodeSelector:
  node-pool: spot-batch

---

3. Namespace Isolation — The Multi-Team Model

Namespaces are the primary isolation unit in Kubernetes. Getting the namespace structure right early prevents months of painful refactoring.

Namespace Design — By Domain, Not By Team

prod-eks-cluster
├── kube-system        # Kubernetes system components — hands off
├── kube-public        # Public cluster info — hands off
├── argocd             # GitOps control plane — platform team only
├── monitoring         # Prometheus, Grafana, OTEL collector
├── fraud-detection    # Fraud scoring microservices
├── payments           # Payment processing services
├── identity           # Keycloak, auth services
├── data-pipeline      # Kafka consumers, enrichment workers
└── shared-services    # Shared tooling accessible by all teams

Why by domain, not by team: Teams change. Services get reassigned. If namespaces are named after teams, you end up with team-alpha owning services in team-beta's namespace after a reorg. Domain-based namespaces outlast team structures.

Terraform — Namespace + ResourceQuota + LimitRange

# modules/eks-namespace/main.tf
resource "kubernetes_namespace" "this" {
  metadata {
    name        = var.namespace_name
    labels      = {
      "app.kubernetes.io/managed-by" = "terraform"
      "environment"                  = var.environment
      "domain"                       = var.domain
    }
    annotations = {
      "team"        = var.owning_team
      "cost-centre" = var.cost_centre
    }
  }
}

resource "kubernetes_resource_quota" "this" {
  metadata {
    name      = "${var.namespace_name}-quota"
    namespace = kubernetes_namespace.this.metadata[0].name
  }
  spec {
    hard = {
      "requests.cpu"           = var.cpu_request_limit
      "requests.memory"        = var.memory_request_limit
      "limits.cpu"             = var.cpu_limit
      "limits.memory"          = var.memory_limit
      "pods"                   = var.max_pods
      "persistentvolumeclaims" = var.max_pvcs
    }
  }
}

resource "kubernetes_limit_range" "this" {
  metadata {
    name      = "${var.namespace_name}-limits"
    namespace = kubernetes_namespace.this.metadata[0].name
  }
  spec {
    limit {
      type            = "Container"
      default         = { "cpu" = "500m", "memory" = "512Mi" }
      default_request = { "cpu" = "100m", "memory" = "128Mi" }
      max             = { "cpu" = "4",     "memory" = "8Gi"   }
    }
    limit {
      type = "Pod"
      max  = { "cpu" = "8", "memory" = "16Gi" }
    }
  }
}

module "fraud_detection_namespace" {
  source = "./modules/eks-namespace"

  namespace_name       = "fraud-detection"
  environment          = "prod"
  domain               = "fraud"
  owning_team          = "fraud-platform"
  cost_centre          = "RISK-001"
  cpu_request_limit    = "16"
  memory_request_limit = "32Gi"
  cpu_limit            = "32"
  memory_limit         = "64Gi"
  max_pods             = "100"
  max_pvcs             = "5"
}

Network Policies — Namespace-Level Traffic Control

By default, all pods in a Kubernetes cluster can talk to all other pods — across namespaces. This is a significant security gap in a multi-team platform. Network Policies enforce which namespaces and pods can communicate.

# Default deny — apply to every namespace as the baseline
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: default-deny-all
  namespace: fraud-detection
spec:
  podSelector: {}
  policyTypes:
    - Ingress
    - Egress

---
# Allow ingress from the identity namespace (Keycloak auth)
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-from-identity
  namespace: fraud-detection
spec:
  podSelector: {}
  policyTypes:
    - Ingress
  ingress:
    - from:
        - namespaceSelector:
            matchLabels:
              kubernetes.io/metadata.name: identity

---
# Allow egress to data-pipeline namespace (Kafka)
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-to-data-pipeline
  namespace: fraud-detection
spec:
  podSelector: {}
  policyTypes:
    - Egress
  egress:
    - to:
        - namespaceSelector:
            matchLabels:
              kubernetes.io/metadata.name: data-pipeline
      ports:
        - protocol: TCP
          port: 9092

---
# Allow DNS — ALWAYS include this with default-deny or name resolution breaks
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-dns
  namespace: fraud-detection
spec:
  podSelector: {}
  policyTypes:
    - Egress
  egress:
    - to:
        - namespaceSelector:
            matchLabels:
              kubernetes.io/metadata.name: kube-system
      ports:
        - protocol: UDP
          port: 53
        - protocol: TCP
          port: 53

---
# Allow egress to AWS services via VPC endpoints
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-aws-endpoints
  namespace: fraud-detection
spec:
  podSelector: {}
  policyTypes:
    - Egress
  egress:
    - to:
        - ipBlock:
            cidr: 10.0.0.0/8
      ports:
        - protocol: TCP
          port: 443

Critical: Always add the DNS allow rule when using default-deny. Forgetting it silently breaks all service discovery — pods can't resolve each other's names, and the error looks like a service failure, not a DNS failure. This is the most common Network Policy mistake.

Why this matters in production: A namespace without ResourceQuota means a single misconfigured Deployment with replicas: 1000 can consume all cluster CPU before Karpenter has time to respond with new nodes. This starves every other namespace simultaneously. ResourceQuota is not bureaucracy — it is the bulkhead that contains a runaway deployment to one namespace and protects the rest of the cluster. Apply quotas before any team deploys their first workload.

Why this matters in production: A default-deny NetworkPolicy without an explicit DNS allow rule breaks all service-to-service communication in that namespace — silently. Pods appear Running and Healthy, but every outbound call times out because the pod cannot resolve the target service's DNS name. The symptom looks like a service failure, not a DNS failure, and takes hours to diagnose without knowing this dependency. Always add the UDP/TCP port 53 to kube-system allow rule as part of your default-deny template.

---

4. RBAC — Least Privilege for Multi-Team Access

The Access Model

Platform Team:  cluster-admin on all namespaces (via EKS Access Entry)
Domain Teams:   edit on their namespace(s) only
CI/CD (ArgoCD): specific permissions per namespace via ArgoCD RBAC
Read-Only:      view on all namespaces (architects, SREs, auditors)
No Direct Prod: nobody runs kubectl apply in production — ArgoCD only

Terraform — EKS Access Entries

# Platform team — full cluster access
resource "aws_eks_access_entry" "platform_team" {
  cluster_name  = aws_eks_cluster.this.name
  principal_arn = aws_iam_role.platform_engineer.arn
  type          = "STANDARD"
}

resource "aws_eks_access_policy_association" "platform_admin" {
  cluster_name  = aws_eks_cluster.this.name
  principal_arn = aws_iam_role.platform_engineer.arn
  policy_arn    = "arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy"
  access_scope  { type = "cluster" }
}

# Fraud detection team — edit access to their namespace only
resource "aws_eks_access_entry" "fraud_team" {
  cluster_name  = aws_eks_cluster.this.name
  principal_arn = aws_iam_role.fraud_team.arn
  type          = "STANDARD"
}

resource "aws_eks_access_policy_association" "fraud_team_edit" {
  cluster_name  = aws_eks_cluster.this.name
  principal_arn = aws_iam_role.fraud_team.arn
  policy_arn    = "arn:aws:eks::aws:cluster-access-policy/AmazonEKSEditPolicy"
  access_scope {
    type       = "namespace"
    namespaces = ["fraud-detection"]
  }
}

# Read-only access — architects, auditors
resource "aws_eks_access_entry" "read_only" {
  cluster_name  = aws_eks_cluster.this.name
  principal_arn = aws_iam_role.read_only.arn
  type          = "STANDARD"
}

resource "aws_eks_access_policy_association" "read_only_view" {
  cluster_name  = aws_eks_cluster.this.name
  principal_arn = aws_iam_role.read_only.arn
  policy_arn    = "arn:aws:eks::aws:cluster-access-policy/AmazonEKSViewPolicy"
  access_scope  { type = "cluster" }
}

Custom RBAC — Fine-Grained Namespace Permissions

The AWS managed AmazonEKSEditPolicy is broad. For regulated environments, create a custom Role that gives developers exactly what they need — no more:

# Read + debug only — no direct deployments in prod
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: developer-prod-readonly
  namespace: fraud-detection
rules:
  - apiGroups: [""]
    resources: ["pods", "pods/log", "services", "endpoints", "configmaps"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["pods/exec"]
    verbs: ["create"]
  - apiGroups: ["apps"]
    resources: ["deployments", "replicasets", "statefulsets"]
    verbs: ["get", "list", "watch"]
  - apiGroups: ["autoscaling"]
    resources: ["horizontalpodautoscalers"]
    verbs: ["get", "list", "watch"]
  # CANNOT: create, update, delete, patch — no direct deploys in prod

---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: fraud-team-prod-readonly
  namespace: fraud-detection
subjects:
  - kind: Group
    name: fraud-platform-engineers
    apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: developer-prod-readonly
  apiGroup: rbac.authorization.k8s.io

---

5. Multi-Environment Helm Values Strategy

This is the section that prevents the most operational pain. How you structure Helm values across environments determines your deployment toil for the life of the platform.

The Three-Layer Hierarchy

charts/
└── fraud-detection-service/
    ├── Chart.yaml
    ├── values.yaml           # Base — defaults for ALL environments
    ├── values-dev.yaml       # Dev overrides
    ├── values-staging.yaml   # Staging overrides
    └── values-prod.yaml      # Production overrides

# values.yaml — base defaults
replicaCount: 1

image:
  repository: 123456789012.dkr.ecr.eu-west-1.amazonaws.com/fraud-detection-service
  pullPolicy: IfNotPresent
  tag: ""

service:
  type: ClusterIP
  port: 8080

resources:
  requests:
    cpu: "200m"
    memory: "256Mi"
  limits:
    cpu: "1000m"
    memory: "1Gi"

autoscaling:
  enabled: false
  minReplicas: 1
  maxReplicas: 5
  targetCPUUtilizationPercentage: 70

topologySpreadConstraints:
  - maxSkew: 1
    topologyKey: topology.kubernetes.io/zone
    whenUnsatisfiable: ScheduleAnyway

livenessProbe:
  httpGet:
    path: /health
    port: 8080
  initialDelaySeconds: 30
  periodSeconds: 10

readinessProbe:
  httpGet:
    path: /ready
    port: 8080
  initialDelaySeconds: 15
  periodSeconds: 5

# values-dev.yaml — development overrides
replicaCount: 1

resources:
  requests:
    cpu: "100m"
    memory: "128Mi"
  limits:
    cpu: "500m"
    memory: "512Mi"

autoscaling:
  enabled: false

topologySpreadConstraints:
  - maxSkew: 1
    topologyKey: topology.kubernetes.io/zone
    whenUnsatisfiable: ScheduleAnyway

# values-prod.yaml — production overrides
replicaCount: 2

resources:
  requests:
    cpu: "500m"
    memory: "512Mi"
  limits:
    cpu: "2000m"
    memory: "2Gi"

autoscaling:
  enabled: true
  minReplicas: 2
  maxReplicas: 20
  targetCPUUtilizationPercentage: 65

topologySpreadConstraints:
  - maxSkew: 1
    topologyKey: topology.kubernetes.io/zone
    whenUnsatisfiable: DoNotSchedule  # Hard constraint — never allow AZ imbalance

tolerations:
  - key: "workload-type"
    value: "latency-sensitive"
    operator: Equal
    effect: NoSchedule

nodeSelector:
  node-pool: on-demand

ArgoCD ApplicationSet — Deploy to All Environments from One Definition

# applicationset.yaml — one definition, three environments
apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: fraud-detection-service
  namespace: argocd
spec:
  generators:
    - list:
        elements:
          - env: dev
            cluster: dev-eks-cluster
            namespace: fraud-detection
            valuesFile: values-dev.yaml
            autoSync: "true"
          - env: staging
            cluster: dev-eks-cluster
            namespace: fraud-detection-staging
            valuesFile: values-staging.yaml
            autoSync: "true"
          - env: prod
            cluster: prod-eks-cluster
            namespace: fraud-detection
            valuesFile: values-prod.yaml
            autoSync: "false"   # Manual sync in prod — always review the diff first

  template:
    metadata:
      name: "fraud-detection-service-{{env}}"
      namespace: argocd
    spec:
      project: fraud-detection
      source:
        repoURL: https://github.com/org/fraud-detection-infra
        targetRevision: main
        path: charts/fraud-detection-service
        helm:
          valueFiles:
            - values.yaml        # Base always loaded first
            - "{{valuesFile}}"   # Environment-specific override on top
      destination:
        server: "https://{{cluster}}.example.com"
        namespace: "{{namespace}}"
      syncPolicy:
        automated:
          prune: "{{autoSync}}"
          selfHeal: "{{autoSync}}"
        syncOptions:
          - CreateNamespace=true
          - ServerSideApply=true

Production lesson: autoSync: false on production is not bureaucracy — it's the safety gate that prevents a bad values-prod.yaml change from immediately rolling out to all 33 services without a human checking the ArgoCD diff first. In staging you want fast feedback. In production you want deliberate control.

Why this matters in production: An accidental merge to main with a bad values-prod.yaml — wrong replica count, wrong resource limits, wrong image tag — will roll out to every production service within minutes if autoSync: true is enabled. The blast radius is the entire platform. autoSync: false in production means a human sees the ArgoCD diff before anything changes. It adds 30 seconds of friction and prevents the class of incident that requires a post-mortem.

---

6. Cluster Upgrade Strategy — Zero-Downtime EKS Version Bumps

EKS cluster upgrades are not optional — AWS ends support for old versions and stops providing security patches. A cluster upgrade with 33 microservices running is a non-trivial operation. Here is the safe pattern.

Upgrade Sequence

1. Check add-on compatibility — every EKS managed add-on has a supported version range per Kubernetes version.
   aws eks describe-addon-versions --kubernetes-version 1.31
2. Update control plane first — control plane and nodes can be one minor version apart.
   aws eks update-cluster-version --name prod-eks-cluster --kubernetes-version 1.31
3. Update managed add-ons — CoreDNS, kube-proxy, VPC CNI — update each to versions compatible with 1.31.
4. Update Managed Node Group (system tier) — rolling update, one node at a time: cordon + drain + replace.
   aws eks update-nodegroup-version --cluster-name prod-eks-cluster --nodegroup-name system
5. Update Karpenter node pools — update amiFamily in EC2NodeClass. Force refresh:
   kubectl annotate nodepool on-demand karpenter.sh/do-disrupt=true
6. Validate — check all pods running, verify add-on versions, run smoke tests via ArgoCD sync.

Terraform — Controlled Version Bumps

variable "cluster_version" {
  description = "EKS Kubernetes version — change here to trigger upgrade"
  type        = string
  default     = "1.30"
}

resource "aws_eks_cluster" "this" {
  version = var.cluster_version
  # ...
}

locals {
  eks_addon_versions = {
    "1.30" = {
      vpc-cni    = "v1.18.1-eksbuild.1"
      coredns    = "v1.11.1-eksbuild.4"
      kube-proxy = "v1.30.0-eksbuild.3"
    }
    "1.31" = {
      vpc-cni    = "v1.19.0-eksbuild.1"
      coredns    = "v1.11.3-eksbuild.1"
      kube-proxy = "v1.31.0-eksbuild.2"
    }
  }
}

resource "aws_eks_addon" "vpc_cni" {
  cluster_name  = aws_eks_cluster.this.name
  addon_name    = "vpc-cni"
  addon_version = local.eks_addon_versions[var.cluster_version]["vpc-cni"]

  resolve_conflicts_on_update = "PRESERVE"
}

---

7. Cost Optimisation — Environment-Level Controls

Dev Cluster — Scale to Zero Overnight

resource "aws_scheduler_schedule" "dev_scale_down" {
  name = "dev-cluster-scale-down"

  flexible_time_window { mode = "OFF" }
  schedule_expression = "cron(0 20 ? * MON-FRI *)"

  target {
    arn      = aws_lambda_function.cluster_scaler.arn
    role_arn = aws_iam_role.scheduler.arn

    input = jsonencode({
      cluster    = "dev-eks-cluster"
      action     = "scale_down"
      namespaces = ["fraud-detection", "payments", "identity"]
    })
  }
}

resource "aws_scheduler_schedule" "dev_scale_up" {
  name = "dev-cluster-scale-up"

  flexible_time_window { mode = "OFF" }
  schedule_expression = "cron(0 7 ? * MON-FRI *)"

  target {
    arn      = aws_lambda_function.cluster_scaler.arn
    role_arn = aws_iam_role.scheduler.arn

    input = jsonencode({
      cluster    = "dev-eks-cluster"
      action     = "scale_up"
      namespaces = ["fraud-detection", "payments", "identity"]
    })
  }
}

Kubecost — Per-Namespace Cost Visibility

resource "helm_release" "kubecost" {
  name             = "kubecost"
  repository       = "https://kubecost.github.io/cost-analyzer/"
  chart            = "cost-analyzer"
  version          = "2.3.0"
  namespace        = "kubecost"
  create_namespace = true

  set {
    name  = "kubecostToken"
    value = var.kubecost_token
  }

  set {
    name  = "global.prometheus.enabled"
    value = "true"
  }
}

Cost Summary — Multi-Environment

Dev Cluster  (Spot-heavy, scaled down overnight)
  Control plane:           $73/month
  Karpenter Spot nodes:   ~$80/month  (avg 2-3 nodes, business hours)
  ─────────────────────────────────────────
  Total dev:              ~$153/month

Prod Cluster  (MNG system + Karpenter)
  Control plane:           $73/month
  System MNG (2×m5.large): $67/month
  Karpenter on-demand:    ~$200/month  (fraud scoring)
  Karpenter Spot:         ~$40/month   (batch)
  ─────────────────────────────────────────
  Total prod:             ~$380/month

  Both clusters:          ~$533/month

---

8. Common Mistakes & Anti-Patterns

---

Architecture Decision Matrix

Decision	Single Cluster + Namespaces	Cluster Per Environment
Cost	✅ One control plane	❌ Two control planes (~$146/month)
Blast radius	❌ Dev affects prod	✅ Fully isolated
Compliance (DORA, PCI)	❌ Hard to satisfy	✅ Clean separation
Upgrade risk	❌ All envs affected simultaneously	✅ Upgrade dev first, validate, then prod
Operational complexity	✅ Simpler	⚠️ Two clusters to manage
Network policy complexity	❌ Cross-namespace rules get complex	✅ Simpler per-cluster
Best for	Small teams, early stage	Regulated, multi-team, production platforms
