AWS ECS Fargate vs EKS — When I Used Both and How to Choose

AWS Series | Part 10 — Real-world decision frameworks and architectural trade-offs from migrating 40+ workloads to ECS and building a 33-microservice platform on EKS.

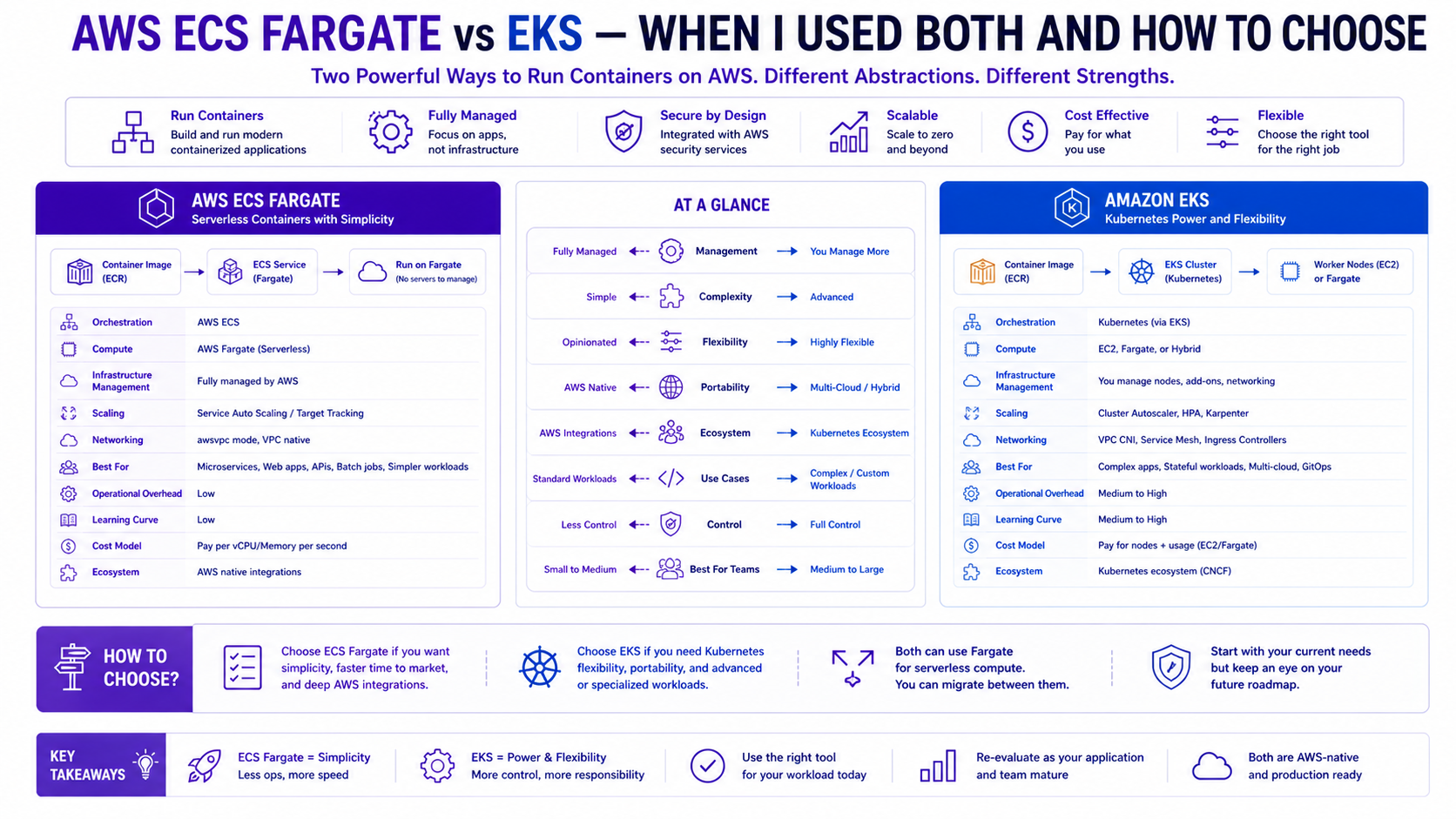

TL;DR Comparison

Introduction — Two Real Projects, Two Different Answers

I have not written this post from AWS documentation. I have written it from two production environments I built myself — and the lessons I learned the hard way in both.

At WCC Group, I worked across two distinct initiatives. The first was migrating 40+ on-premises workloads to AWS using AWS Application Migration Service (MGN) — a lift-and-shift to EC2 focused entirely on speed and zero-downtime datacenter decommission. ECS played no part in that migration. The second was a separate greenfield project: architecting an ECS Fargate platform to deploy an internal product across multiple client environments. No legacy to carry, no Kubernetes expertise in the team, and a hard requirement to onboard new clients quickly and consistently. ECS Fargate was the right tool — no nodes to manage, no kubelet to debug, repeatable per-client Terraform modules, and awsvpc networking for clean client isolation.

At Rabobank, I inherited a fraud detection platform built on 33 microservices. The team had GitOps requirements, multi-team ownership of namespaces, complex traffic management between services, Karpenter-driven cost optimisation, and Databricks integration. ECS could not have handled this complexity. The answer was Amazon EKS. It required significantly more investment in platform engineering — but it gave the team the control, ecosystem, and developer experience that a platform of this scale demands.

The honest answer to "ECS or EKS?" is: it depends on the platform you are building, not the technology you prefer. This post gives you the framework to make that call correctly.

1. ECS Fargate — Serverless Containers Done Right

How It Works

ECS (Elastic Container Service) is AWS's native container orchestration service. In Fargate mode, there are no EC2 instances to manage — AWS provisions the compute underneath your containers invisibly. You define what you want to run (the Task Definition) and ECS handles where and how it runs.

ECS Cluster
└── Service (desired count: 3, auto scaling: 1-10)
    ├── Task (Task Definition: app:v2.1)
    │   ├── Container: app (1 vCPU, 2GB RAM)
    │   └── Container: log-router (0.1 vCPU, 256MB RAM)
    ├── Task (running)
    └── Task (running)

Core Concepts You Must Understand

Task Definition — the blueprint. Defines container images, CPU/memory, environment variables, IAM roles, logging, port mappings, and health checks. Version-controlled — every change creates a new revision.

Service — maintains a desired count of running Tasks. Handles rolling deployments, integrates with ALB for traffic routing, and drives auto scaling.

Cluster — a logical grouping of services. In Fargate mode it is purely a namespace — no underlying infrastructure to manage.

awsvpc networking — every Fargate task gets its own ENI and private IP in your VPC. This means Security Groups apply directly at the task level — not at a shared node level. This is a significant security advantage over traditional EC2-based ECS.

Full ECS Fargate Terraform — Production Pattern

# ECS Cluster
resource "aws_ecs_cluster" "main" {
  name = "prod-cluster"

  configuration {
    execute_command_configuration {
      kms_key_id = aws_kms_key.ecs.arn
      logging    = "OVERRIDE"

      log_configuration {
        cloud_watch_log_group_name = aws_cloudwatch_log_group.ecs_exec.name
      }
    }
  }

  setting {
    name  = "containerInsights"
    value = "enabled"   # Container-level metrics in CloudWatch
  }

  tags = { Name = "prod-cluster" }
}

# Capacity Provider — Fargate + Fargate Spot for cost optimisation
resource "aws_ecs_cluster_capacity_providers" "main" {
  cluster_name = aws_ecs_cluster.main.name

  capacity_providers = ["FARGATE", "FARGATE_SPOT"]

  default_capacity_provider_strategy {
    base              = 1              # At least 1 task on standard Fargate
    weight            = 20            # 20% on standard Fargate
    capacity_provider = "FARGATE"
  }

  default_capacity_provider_strategy {
    weight            = 80            # 80% on Fargate Spot (up to 70% cheaper)
    capacity_provider = "FARGATE_SPOT"
  }
}

# Task Definition
resource "aws_ecs_task_definition" "app" {
  family                   = "app"
  requires_compatibilities = ["FARGATE"]
  network_mode             = "awsvpc"    # Each task gets its own ENI + private IP
  cpu                      = "1024"      # 1 vCPU
  memory                   = "2048"      # 2 GB RAM
  execution_role_arn       = aws_iam_role.ecs_execution.arn
  task_role_arn            = aws_iam_role.ecs_task.arn

  # FireLens log router — ship logs to CloudWatch + S3
  container_definitions = jsonencode([
    {
      name      = "log-router"
      image     = "public.ecr.aws/aws-observability/aws-for-fluent-bit:stable"
      essential = true
      firelensConfiguration = {
        type = "fluentbit"
        options = { enable-ecs-log-metadata = "true" }
      }
      logConfiguration = {
        logDriver = "awslogs"
        options = {
          "awslogs-group"         = "/ecs/log-router"
          "awslogs-region"        = var.region
          "awslogs-stream-prefix" = "firelens"
        }
      }
      cpu    = 64
      memory = 128
    },
    {
      name      = "app"
      image     = "${aws_ecr_repository.app.repository_url}:${var.image_tag}"
      essential = true
      cpu       = 960
      memory    = 1920

      portMappings = [{
        containerPort = 8080
        protocol      = "tcp"
      }]

      environment = [
        { name = "ENV",    value = "production" },
        { name = "REGION", value = var.region }
      ]

      # Secrets from Secrets Manager — never pass secrets as env vars directly
      secrets = [
        {
          name      = "DB_PASSWORD"
          valueFrom = "arn:aws:secretsmanager:${var.region}:${var.account_id}:secret:prod/db/password"
        },
        {
          name      = "API_KEY"
          valueFrom = "arn:aws:secretsmanager:${var.region}:${var.account_id}:secret:prod/api/key"
        }
      ]

      logConfiguration = {
        logDriver = "awsfirelens"
        options = {
          Name              = "cloudwatch"
          region            = var.region
          log_group_name    = "/ecs/app"
          log_stream_prefix = "app/"
          auto_create_group = "false"
        }
      }

      healthCheck = {
        command     = ["CMD-SHELL", "curl -f http://localhost:8080/health || exit 1"]
        interval    = 30
        timeout     = 5
        retries     = 3
        startPeriod = 60
      }
    }
  ])

  tags = { Name = "app-task-definition" }
}

# ECS Service — maintains desired count + rolling deployment
resource "aws_ecs_service" "app" {
  name            = "app-service"
  cluster         = aws_ecs_cluster.main.id
  task_definition = aws_ecs_task_definition.app.arn
  desired_count   = 3

  # Deployment configuration — rolling update with rollback
  deployment_minimum_healthy_percent = 100   # Never drop below full capacity
  deployment_maximum_percent         = 200   # Allow double capacity during deployment

  deployment_circuit_breaker {
    enable   = true    # Automatically roll back on deployment failure
    rollback = true
  }

  # Capacity provider strategy — Fargate Spot for cost savings
  capacity_provider_strategy {
    base              = 1
    weight            = 20
    capacity_provider = "FARGATE"
  }

  capacity_provider_strategy {
    weight            = 80
    capacity_provider = "FARGATE_SPOT"
  }

  network_configuration {
    subnets          = aws_subnet.private[*].id
    security_groups  = [aws_security_group.ecs_tasks.id]
    assign_public_ip = false   # Never assign public IPs to Fargate tasks
  }

  # ALB integration — register tasks with target group
  load_balancer {
    target_group_arn = aws_lb_target_group.app.arn
    container_name   = "app"
    container_port   = 8080
  }

  # Service discovery — register in Cloud Map for service-to-service communication
  service_registries {
    registry_arn = aws_service_discovery_service.app.arn
  }

  # Enable ECS Exec — drop into a running container for debugging
  enable_execute_command = true

  tags = { Name = "app-service" }
}

# Auto Scaling — scale based on CPU and memory
resource "aws_appautoscaling_target" "ecs" {
  max_capacity       = 20
  min_capacity       = 3
  resource_id        = "service/${aws_ecs_cluster.main.name}/${aws_ecs_service.app.name}"
  scalable_dimension = "ecs:service:DesiredCount"
  service_namespace  = "ecs"
}

resource "aws_appautoscaling_policy" "cpu" {
  name               = "cpu-scaling"
  policy_type        = "TargetTrackingScaling"
  resource_id        = aws_appautoscaling_target.ecs.resource_id
  scalable_dimension = aws_appautoscaling_target.ecs.scalable_dimension
  service_namespace  = aws_appautoscaling_target.ecs.service_namespace

  target_tracking_scaling_policy_configuration {
    predefined_metric_specification {
      predefined_metric_type = "ECSServiceAverageCPUUtilization"
    }
    target_value       = 70.0   # Scale when CPU > 70%
    scale_in_cooldown  = 300
    scale_out_cooldown = 60
  }
}

resource "aws_appautoscaling_policy" "memory" {
  name               = "memory-scaling"
  policy_type        = "TargetTrackingScaling"
  resource_id        = aws_appautoscaling_target.ecs.resource_id
  scalable_dimension = aws_appautoscaling_target.ecs.scalable_dimension
  service_namespace  = aws_appautoscaling_target.ecs.service_namespace

  target_tracking_scaling_policy_configuration {
    predefined_metric_specification {
      predefined_metric_type = "ECSServiceAverageMemoryUtilization"
    }
    target_value       = 75.0
    scale_in_cooldown  = 300
    scale_out_cooldown = 60
  }
}

ECS Service Discovery — Service-to-Service Communication

For microservices that need to call each other directly (without going through an ALB):

# Cloud Map namespace — internal DNS for service discovery
resource "aws_service_discovery_private_dns_namespace" "main" {
  name        = "internal.prod"
  description = "Internal service discovery namespace"
  vpc         = aws_vpc.main.id
}

# Service discovery entry for the app service
resource "aws_service_discovery_service" "app" {
  name = "app"

  dns_config {
    namespace_id = aws_service_discovery_private_dns_namespace.main.id

    dns_records {
      ttl  = 10
      type = "A"
    }

    routing_policy = "MULTIVALUE"
  }

  health_check_custom_config {
    failure_threshold = 1
  }
}
# Result: app.internal.prod → resolves to all healthy task IPs
# Any service can call http://app.internal.prod:8080 directly

Scale and Consistency — The Multi-Client Module Pattern

In the WCC project, we needed to deploy the same application stack for multiple clients with total isolation. By wrapping the ECS pattern into a single Terraform module, we could onboard a new client in minutes with a few lines of code. This ensured that every client environment had the same security groups, logging configuration, and auto-scaling rules.

# Multi-client deployment using a standardized ECS module
module "client_a" {
  source = "./modules/ecs-platform"

  client_name   = "client-a"
  vpc_id        = var.client_a_vpc_id
  subnets       = var.client_a_subnets
  cpu           = 1024
  memory        = 2048
  image_tag     = "v2.1.0"
}

module "client_b" {
  source = "./modules/ecs-platform"

  client_name   = "client-b"
  vpc_id        = var.client_b_vpc_id
  subnets       = var.client_b_subnets
  cpu           = 512
  memory        = 1024
  image_tag     = "v2.0.8"   # Clients can be on different versions
}

Why this matters in production: A Fargate Spot task gets a two-minute warning before interruption. If your application does not handle SIGTERM gracefully — flushing buffers, completing in-flight requests, deregistering from the load balancer — that two minutes becomes data loss or dropped requests. Test Spot interruption handling explicitly before enabling Spot in production. An ALB with connection draining set to 30 seconds and a graceful shutdown handler in your application is the complete solution.

2. Amazon EKS — Kubernetes at Enterprise Scale

Why Kubernetes for Complex Platforms

At Rabobank, the fraud detection platform had requirements that simply could not be met with ECS:

• 33 microservices owned by multiple teams — namespace-level isolation is essential
• GitOps with ArgoCD — Kubernetes is the de facto standard; ECS integration requires custom tooling
• Karpenter for intelligent, cost-optimised node provisioning based on actual pod requirements
• KEDA for event-driven autoscaling tied to SQS queue depth and Kafka consumer lag
• Helm for templated, versioned, reusable infrastructure-as-code at the application layer
• Service mesh (AWS App Mesh / Istio) for mutual TLS between services and fine-grained traffic management
• Custom resource definitions (CRDs) for Databricks operator, Spark operator, and internal platform tooling

ECS is excellent at running containers. EKS is a platform for building platforms.

Full EKS Cluster Terraform — Production Pattern

# EKS Cluster
resource "aws_eks_cluster" "main" {
  name     = "prod-eks-cluster"
  role_arn = aws_iam_role.eks_cluster.arn
  version  = "1.30"

  vpc_config {
    subnet_ids              = concat(aws_subnet.private[*].id, aws_subnet.public[*].id)
    endpoint_private_access = true    # kubectl via private endpoint only
    endpoint_public_access  = false   # No public API server endpoint
    security_group_ids      = [aws_security_group.eks_cluster.id]
  }

  # Envelope encryption for Kubernetes secrets using KMS
  encryption_config {
    provider {
      key_arn = aws_kms_key.eks.arn
    }
    resources = ["secrets"]
  }

  enabled_cluster_log_types = [
    "api",            # API server audit logs
    "audit",          # Kubernetes audit logs — required for compliance
    "authenticator",  # Authentication logs
    "controllerManager",
    "scheduler"
  ]

  access_config {
    authentication_mode                         = "API_AND_CONFIG_MAP"
    bootstrap_cluster_creator_admin_permissions = false   # Explicit access entries only
  }

  tags = { Name = "prod-eks-cluster" }

  depends_on = [
    aws_iam_role_policy_attachment.eks_cluster_policy,
    aws_cloudwatch_log_group.eks
  ]
}

# EKS Access Entry — IAM roles mapped to Kubernetes RBAC
resource "aws_eks_access_entry" "platform_team" {
  cluster_name  = aws_eks_cluster.main.name
  principal_arn = aws_iam_role.platform_engineer.arn
  type          = "STANDARD"
}

resource "aws_eks_access_policy_association" "platform_admin" {
  cluster_name  = aws_eks_cluster.main.name
  principal_arn = aws_iam_role.platform_engineer.arn
  policy_arn    = "arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy"

  access_scope { type = "cluster" }
}

# Dev team — namespace-scoped access only
resource "aws_eks_access_entry" "dev_team" {
  cluster_name  = aws_eks_cluster.main.name
  principal_arn = aws_iam_role.developer.arn
  type          = "STANDARD"
}

resource "aws_eks_access_policy_association" "dev_namespace" {
  cluster_name  = aws_eks_cluster.main.name
  principal_arn = aws_iam_role.developer.arn
  policy_arn    = "arn:aws:eks::aws:cluster-access-policy/AmazonEKSEditPolicy"

  access_scope {
    type       = "namespace"
    namespaces = ["fraud-detection", "payments"]   # Dev team scoped to their namespaces
  }
}

Karpenter — Intelligent Node Provisioning

This is the single biggest operational advantage we gained at Rabobank over managed node groups. Karpenter provisions exactly the right EC2 instance type for each workload — not a pre-configured node group that you over-provision "just in case."

# Karpenter IAM Role — needs EC2 permissions to launch instances
resource "aws_iam_role" "karpenter" {
  name = "karpenter-controller"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [{
      Effect = "Allow"
      Principal = {
        Federated = aws_iam_openid_connect_provider.eks.arn
      }
      Action = "sts:AssumeRoleWithWebIdentity"
      Condition = {
        StringEquals = {
          "${aws_iam_openid_connect_provider.eks.url}:sub" = "system:serviceaccount:karpenter:karpenter"
          "${aws_iam_openid_connect_provider.eks.url}:aud" = "sts.amazonaws.com"
        }
      }
    }]
  })
}

resource "aws_iam_role_policy_attachment" "karpenter" {
  role       = aws_iam_role.karpenter.name
  policy_arn = aws_iam_policy.karpenter.arn
}

# Karpenter Node Pool — defines what nodes Karpenter can provision
# Applied via kubectl / Helm after cluster creation
# karpenter-nodepool.yaml:
# apiVersion: karpenter.sh/v1
# kind: NodePool
# metadata:
#   name: default
# spec:
#   template:
#     spec:
#       nodeClassRef:
#         apiVersion: karpenter.k8s.aws/v1
#         kind: EC2NodeClass
#         name: default
#       requirements:
#         - key: "karpenter.k8s.aws/instance-category"
#           operator: In
#           values: ["c", "m", "r"]       # Compute, Memory, General purpose
#         - key: "karpenter.k8s.aws/instance-cpu"
#           operator: In
#           values: ["4", "8", "16", "32"]
#         - key: "karpenter.sh/capacity-type"
#           operator: In
#           values: ["spot", "on-demand"]  # Prefer Spot, fallback to On-Demand
#         - key: "kubernetes.io/arch"
#           operator: In
#           values: ["amd64", "arm64"]    # Support both x86 and Graviton
#   disruption:
#     consolidationPolicy: WhenEmptyOrUnderutilized
#     consolidateAfter: 30s              # Bin-pack and remove underutilised nodes fast
#   limits:
#     cpu: 1000
#     memory: 4000Gi

EKS Add-ons — The Essential Set

# EKS Managed Add-ons — AWS handles version management and patching
locals {
  eks_addons = {
    vpc-cni = {
      version = "v1.18.1-eksbuild.1"
      configuration_values = jsonencode({
        env = {
          ENABLE_PREFIX_DELEGATION = "true"   # More IPs per node
          WARM_PREFIX_TARGET       = "1"
        }
      })
    }
    coredns = {
      version = "v1.11.1-eksbuild.4"
    }
    kube-proxy = {
      version = "v1.30.0-eksbuild.3"
    }
    aws-ebs-csi-driver = {
      version           = "v1.30.0-eksbuild.1"
      service_account_role_arn = aws_iam_role.ebs_csi.arn
    }
    eks-pod-identity-agent = {
      version = "v1.3.0-eksbuild.1"
    }
  }
}

resource "aws_eks_addon" "main" {
  for_each = local.eks_addons

  cluster_name             = aws_eks_cluster.main.name
  addon_name               = each.key
  addon_version            = each.value.version
  service_account_role_arn = lookup(each.value, "service_account_role_arn", null)
  configuration_values     = lookup(each.value, "configuration_values", null)

  resolve_conflicts_on_update = "PRESERVE"

  tags = { Name = "addon-${each.key}" }
}

EKS Pod Identity — The Modern Way to Grant AWS Permissions

EKS Pod Identity replaces IRSA (IAM Roles for Service Accounts) as the recommended pattern. Simpler configuration, no OIDC thumbprint management:

# Pod Identity Association — maps a Kubernetes ServiceAccount to an IAM role
resource "aws_eks_pod_identity_association" "fraud_service" {
  cluster_name    = aws_eks_cluster.main.name
  namespace       = "fraud-detection"
  service_account = "fraud-service"
  role_arn        = aws_iam_role.fraud_service.arn
}

# The IAM role — Kubernetes pod assumes this role automatically
resource "aws_iam_role" "fraud_service" {
  name = "fraud-service-pod-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [{
      Effect    = "Allow"
      Principal = { Service = "pods.eks.amazonaws.com" }
      Action    = ["sts:AssumeRole", "sts:TagSession"]
    }]
  })
}

Why this matters in production: IRSA (IAM Roles for Service Accounts) requires an OIDC thumbprint that changes when AWS rotates the intermediate certificate — and AWS has done this without much warning. Pod Identity removes the thumbprint dependency entirely. Any IRSA setup that has not been tested after an AWS certificate rotation is a latent authentication failure waiting to happen. Migrate to Pod Identity for all new EKS workloads.

3. GitOps with ArgoCD on EKS — The Rabobank Pattern

GitOps was a hard requirement at Rabobank — every change to production must be traceable to a Git commit, peer-reviewed, and auditable. ECS has no native GitOps story. EKS with ArgoCD delivers this out of the box.

# ArgoCD installed via Helm
resource "helm_release" "argocd" {
  name             = "argocd"
  repository       = "https://argoproj.github.io/argo-helm"
  chart            = "argo-cd"
  version          = "7.3.11"
  namespace        = "argocd"
  create_namespace = true

  values = [yamlencode({
    server = {
      ingress = {
        enabled = true
        annotations = {
          "kubernetes.io/ingress.class"               = "alb"
          "alb.ingress.kubernetes.io/scheme"          = "internal"
          "alb.ingress.kubernetes.io/target-type"     = "ip"
          "alb.ingress.kubernetes.io/certificate-arn" = var.acm_cert_arn
        }
      }
    }
    configs = {
      params = {
        "server.insecure" = false
      }
      cm = {
        "admin.enabled" = "false"   # Disable local admin — use SSO only
        "oidc.config"   = yamlencode({
          name         = "Okta"
          issuer       = var.okta_issuer
          clientID     = var.okta_client_id
          clientSecret = "$oidc.okta.clientSecret"
          requestedScopes = ["openid", "profile", "email", "groups"]
        })
      }
    }
    # High availability ArgoCD — 3 replicas for production
    replicaCount = 3
  })]
}

ArgoCD Application — deploy a microservice from Git:

# fraud-detection-app.yaml — applied by the platform team once per service
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: fraud-detection-service
  namespace: argocd
spec:
  project: fraud-detection

  source:
    repoURL: https://github.com/rabobank/fraud-detection-infra
    targetRevision: main
    path: services/fraud-detection
    helm:
      valueFiles:
        - values-production.yaml

  destination:
    server: https://kubernetes.default.svc
    namespace: fraud-detection

  syncPolicy:
    automated:
      prune: true      # Remove resources deleted from Git
      selfHeal: true   # Revert manual changes — Git is the source of truth
    syncOptions:
      - CreateNamespace=true
      - ServerSideApply=true
    retry:
      limit: 5
      backoff:
        duration: 5s
        factor: 2
        maxDuration: 3m

Production lesson from Rabobank: selfHeal: true is essential in regulated environments. Without it, a manual kubectl apply in production bypasses Git review and creates a compliance gap. With selfHeal, any manual change is automatically reverted within seconds — Git is the only source of truth, enforced automatically.

Why this matters in production: A kubectl apply run directly against a production cluster by an engineer debugging an incident looks identical to a legitimate deployment — until ArgoCD syncs and reverts it, potentially mid-incident. With selfHeal: true, ArgoCD reverts any drift within seconds. This is not just a compliance control — it prevents the situation where a manual fix made during an incident is silently reverted by ArgoCD, making the incident worse. Document the "break-glass" procedure for intentional drift before you need it.

4. Cost Deep-Dive — The Honest Numbers

ECS Fargate Pricing

vCPU:   $0.04048/vCPU/hour
Memory: $0.004445/GB/hour

Example — 10 tasks, each 1 vCPU + 2 GB RAM, running 24/7:
vCPU:   10 × 1 × $0.04048 × 730h  = $295.50/month
Memory: 10 × 2 × $0.004445 × 730h =  $64.90/month
Total:                               $360.40/month

With 80% Fargate Spot (70% discount):
Standard (20%): 2 tasks × $36.04  =  $72.08/month
Spot (80%):     8 tasks × $10.81  =  $86.48/month
Total with Spot:                     $158.56/month — 56% saving

EKS Pricing

Control plane:  $0.10/hour × 730h          = $73.00/month (fixed)
Node group (3× m5.xlarge, 24/7):
  3 × $0.192/hour × 730h                   = $420.48/month

With Karpenter + Spot:
  Karpenter provisions m5.xlarge Spot:
  3 × $0.057/hour × 730h                   = $124.89/month
  Control plane:                            = $73.00/month
  Total with Karpenter Spot:               = $197.89/month

At Rabobank — 33 microservices, ~50 pods:
  Without Karpenter: ~$1,800/month (6 m5.2xlarge on-demand)
  With Karpenter + Spot: ~$380/month — 79% saving

The Karpenter lesson from Rabobank: Before Karpenter, we provisioned 6 m5.2xlarge nodes to handle peak load — and watched them idle at 20% utilisation at night. Karpenter replaced this with bin-packed, right-sized, mostly Spot nodes that scale to zero overnight and provision fresh instances for the morning peak. The saving was significant enough that EKS became cheaper than ECS Fargate at our scale.

Cost Crossover Point

5. Networking — How Each Integrates with VPC

ECS Fargate Networking

Every Fargate task runs in awsvpc mode — each task gets its own ENI, its own private IP, and its own Security Group assignment. This is the cleanest network security model available in AWS container services:

# Security Group — one per service, not shared across tasks
resource "aws_security_group" "fraud_service" {
  name   = "fraud-service-sg"
  vpc_id = aws_vpc.main.id

  ingress {
    from_port       = 8080
    to_port         = 8080
    protocol        = "tcp"
    security_groups = [aws_security_group.alb.id]   # ALB only
  }

  # Service-to-service: allow from payment service SG
  ingress {
    from_port       = 8080
    to_port         = 8080
    protocol        = "tcp"
    security_groups = [aws_security_group.payment_service.id]
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }
}

EKS Networking — VPC CNI + ALB Ingress Controller

# AWS Load Balancer Controller — creates ALBs from Kubernetes Ingress resources
resource "helm_release" "aws_lb_controller" {
  name       = "aws-load-balancer-controller"
  repository = "https://aws.github.io/eks-charts"
  chart      = "aws-load-balancer-controller"
  namespace  = "kube-system"
  version    = "1.8.1"

  set {
    name  = "clusterName"
    value = aws_eks_cluster.main.name
  }

  set {
    name  = "serviceAccount.annotations.eks\\.amazonaws\\.com/role-arn"
    value = aws_iam_role.aws_lb_controller.arn
  }

  # Use Fargate for the controller itself — no dedicated node needed
  set {
    name  = "tolerations[0].key"
    value = "eks.amazonaws.com/compute-type"
  }
}

Kubernetes Ingress — creates an ALB automatically:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: fraud-detection-ingress
  namespace: fraud-detection
  annotations:
    kubernetes.io/ingress.class: alb
    alb.ingress.kubernetes.io/scheme: internal
    alb.ingress.kubernetes.io/target-type: ip       # Route directly to pod IPs
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:eu-west-1:123:certificate/xxx
    alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-TLS13-1-2-2021-06
    alb.ingress.kubernetes.io/wafv2-acl-arn: arn:aws:wafv2:eu-west-1:123:regional/webacl/xxx
spec:
  rules:
    - host: fraud-api.internal.rabobank.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: fraud-detection-service
                port:
                  number: 8080

6. The Decision Framework

How many containerised services do you need to run?
├── 1-10 services?
│   └── ECS Fargate — less complexity, lower operational overhead
└── 10+ services with multi-team ownership?
    └── EKS — namespace isolation, RBAC, GitOps are worth the investment

Do you have Kubernetes expertise in the team?
├── YES → EKS (leverage existing skills)
└── NO
    ├── Timeline < 3 months? → ECS Fargate (faster to production)
    └── Timeline > 6 months? → Invest in EKS skills — pays off at scale

Do you need GitOps (ArgoCD/Flux)?
└── YES → EKS (native GitOps ecosystem)
    ECS requires custom tooling — significant engineering investment

Do you need advanced autoscaling?
├── CPU/Memory based? → Both work (ECS App Auto Scaling / HPA)
├── Event-driven (SQS depth, Kafka lag)? → EKS + KEDA
└── Cost-optimised node provisioning? → EKS + Karpenter

Do you have stateful workloads?
├── NO → Both work
└── YES → EKS (StatefulSets + EBS CSI driver + PersistentVolumes)

Are you migrating from on-premises quickly?
└── YES → ECS Fargate (lower barrier, faster time-to-production)

Do you need a service mesh (mTLS between services)?
└── YES → EKS (App Mesh, Istio, Linkerd — native support)

Cost at scale?
├── <20 pods → ECS Fargate (no control plane cost)
└── >20 pods → EKS + Karpenter + Spot (savings exceed control plane cost)

7. Common Mistakes & Anti-Patterns

resources:
  requests:
    cpu: "500m"       # Half a vCPU — what the pod normally uses
    memory: "512Mi"   # Normal memory usage
  limits:
    cpu: "2000m"      # Allow burst to 2 vCPU
    memory: "1Gi"     # Hard memory ceiling — OOM kill above this

Architecture Decision Matrix
